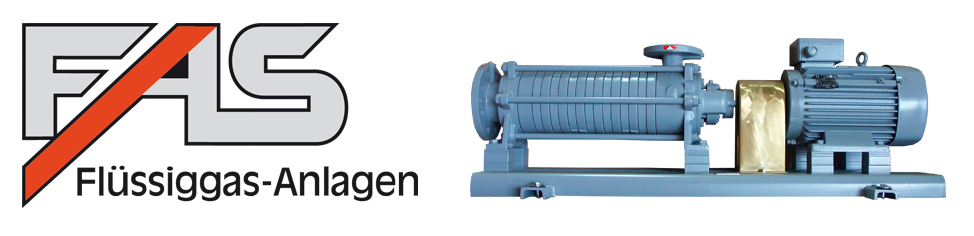

FAS side channel pump for suction operation

Side channel pump PN 25, type FAS, construction AP for suction operation, for stationary plants. Side channel pumps are particularly distinguished in applications with great discharge heads.

Horizontal, self-priming, transport of gas side channel pump in segmental type construction with open vane wheel impellers as well as upstreamed centrifugal stage in combined system for achivement of favourable net positive suction heads (NPSH), direction of rotation to the left from drive to pump, suction pieces horizontal, pressure joint vertically upward. Flange conncetion according to DIN EN 1092-1, suction- and pressure casing made from spheroidal graphite iron GGG 40.3/ EN-GJS-400-18, steps made from GG 25 / EN-GJL-250.

Side channel pump set/ unit consisting of:

Pump with Ex three-phase-motor 230/400 V, from 3,6 kW 400/690 V, 50 Hz, ignition protection type: Ex II 2G Ex e II T1-3 Gb, speed: 1500 min-1, completely constructed on base plate made from steel, ready for connection for installation, primed and lacquered.

Further motor options on request.

Documentation: EU declaration of conformity in accordance with machinery directive and ATEX Directive

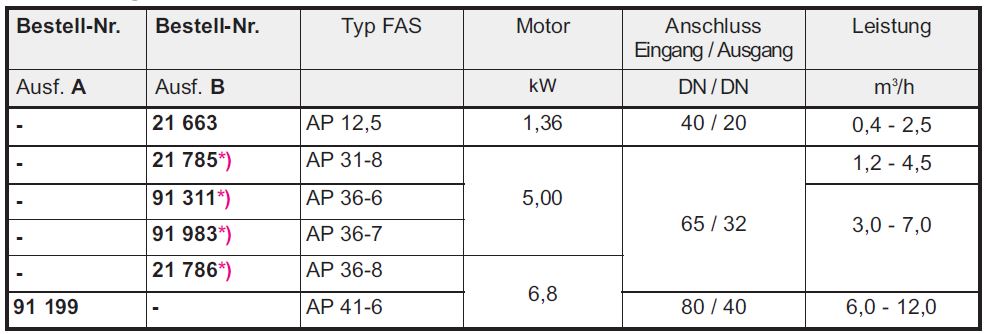

*)special version with two levels of suction, suitable for suction operation of underground Storage containers

The indicated engine power can be adapted according to the special pump application. Please enquire.

  • Flow monitor as dry-run protection of the pump
  • Overflow valve for adjustment of the pump pressure
