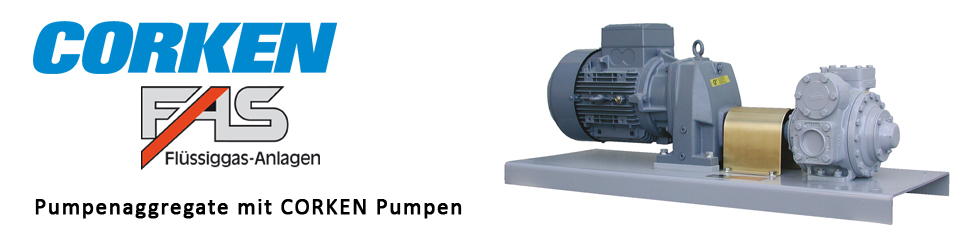

FAS Pump Unit with rotary vane pumps from the Corken Z series

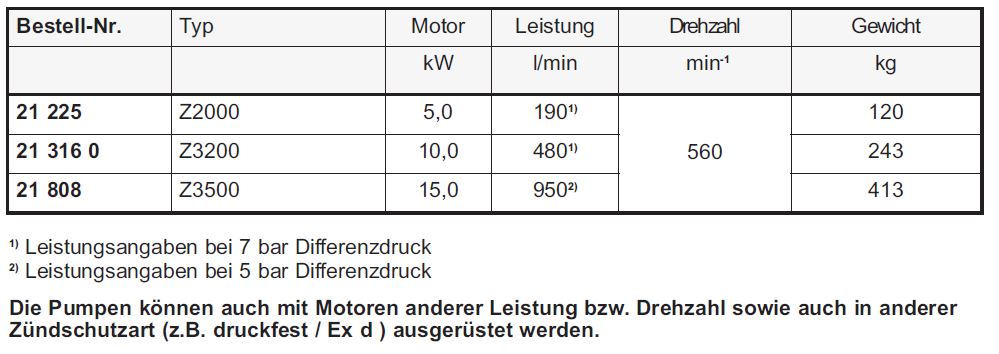

Corken pump unit PN 25, for inlet mode, case made out of spheroidal graphite iron ASTM A536, single-acting mechanical seal, whole unit out of one single steel base plate, built up ready for connection, installed, primed and lacquered, with ex-spur gear engine 400/690 V, 50 Hz, rotational speed 560 min-1, ignition protection type Ex II 2 G Ex e II T3 Gb, including coupling and coupling protection.
Documentation: Installation declaration according to directive for machines, ex-motor following ATEX directive

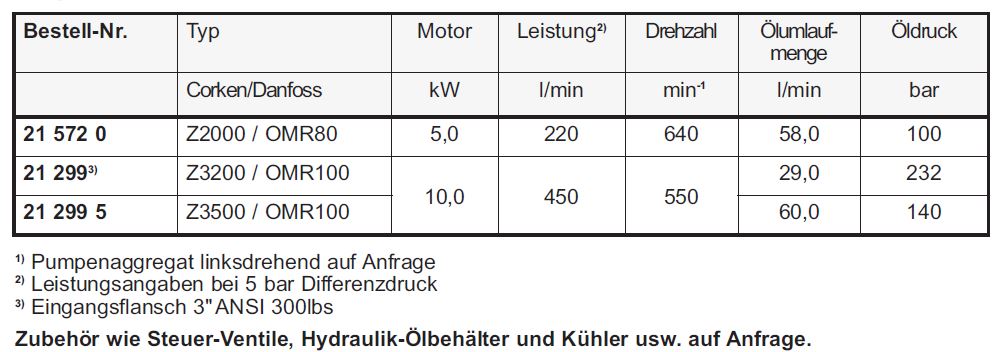

Corken pump unit with hydraulic drive PN 25, for inlet mode, case made out of spheroidal graphite iron ASTM A536, single-acting mechanical seal, unit consisting out of pump, hydraulic adapter, coupling and hydraulic drive, mounted, primed and lacquered ready for installation
Documentation: Installation declaration according to directive for machines, pump with NPT threaded flange, right-turning 1)

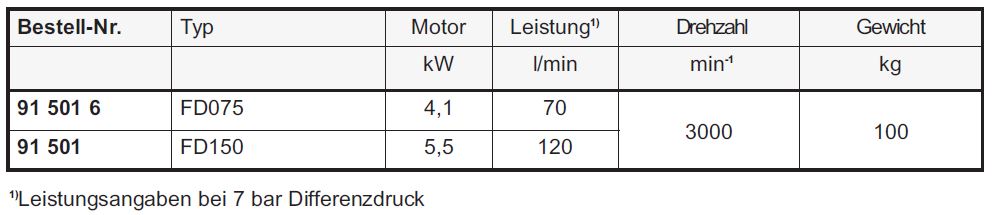

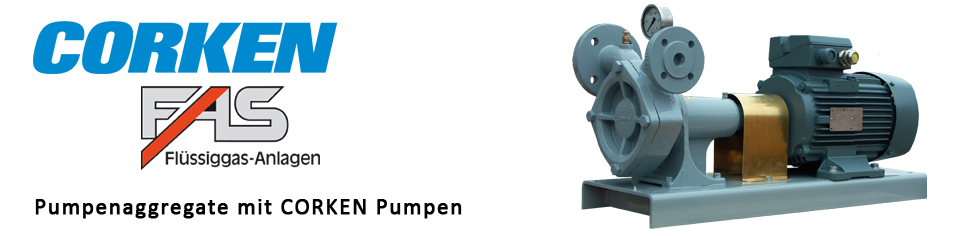

Corken turbine pump unit PN 25, for inlet mode, case made out of spheroidal graphite iron ASTM A536, single-acting mechanical seal, flange connection according to EN 1092-2, inlet DN 40, outlet DN25, whole unit out of one single steel base plate, built up ready for connection, installed, primed and lacquered, with ex-spur gear engine 400 V. 50 Hz, rotational speed 3000 min-1, ignition protection type Ex II 2 G Ex e II T3 Gb, including coupling and coupling protection.
Documentation: Installation declaration according to directive for machines, EU declaration of conformity following ATEX directive
The pumps can be equipped with engines with varying engine power respectively rotational speed.
- Flow monitor or differential pressure switch as dry-run protection of the pump
- Overflow valves for adjustment of the pump pressure
- Engines in ignition protection type Ex-d on request
